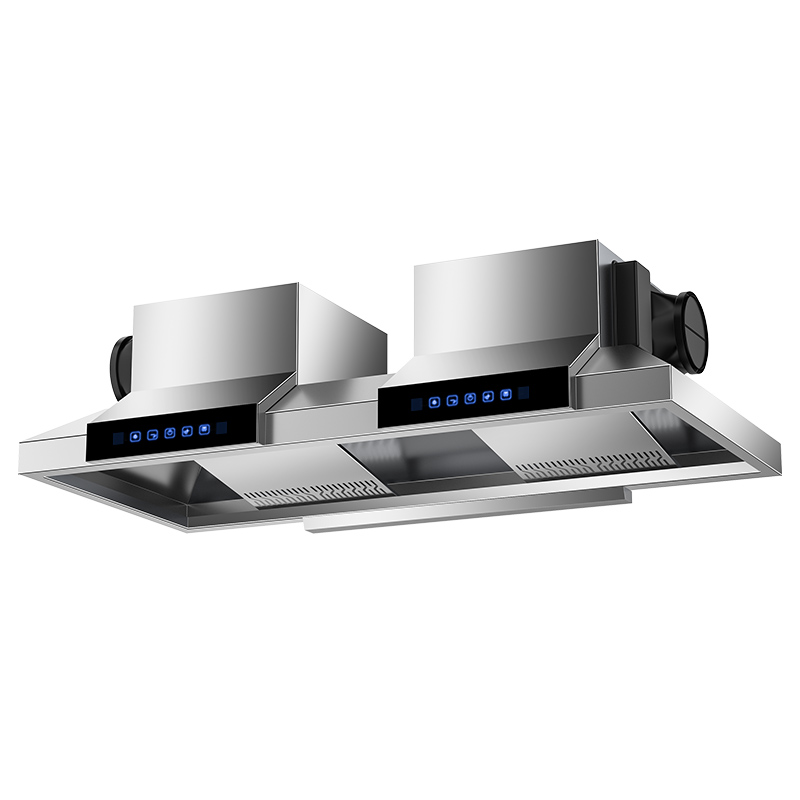

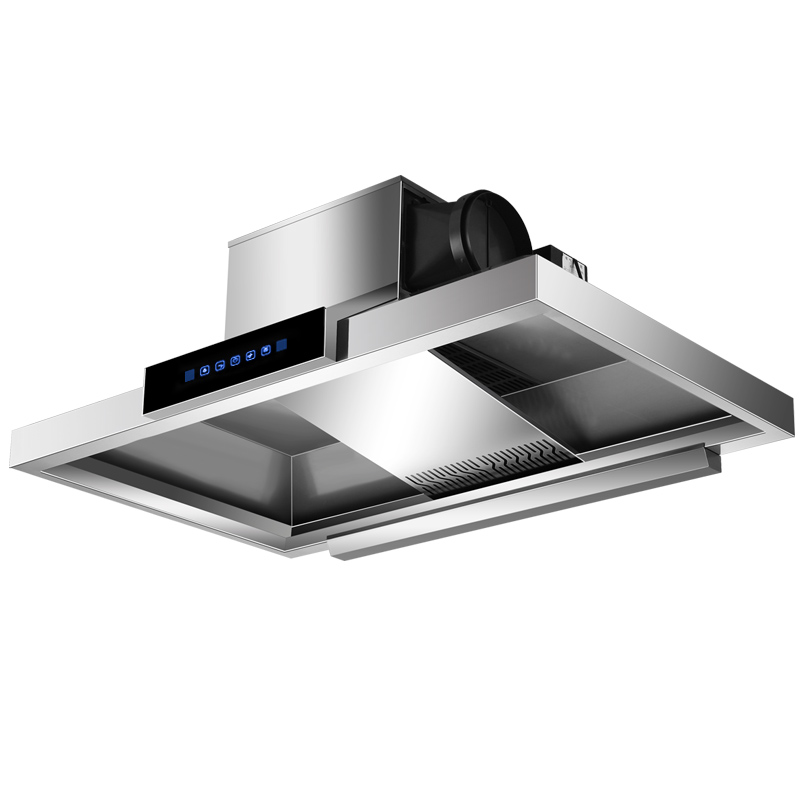

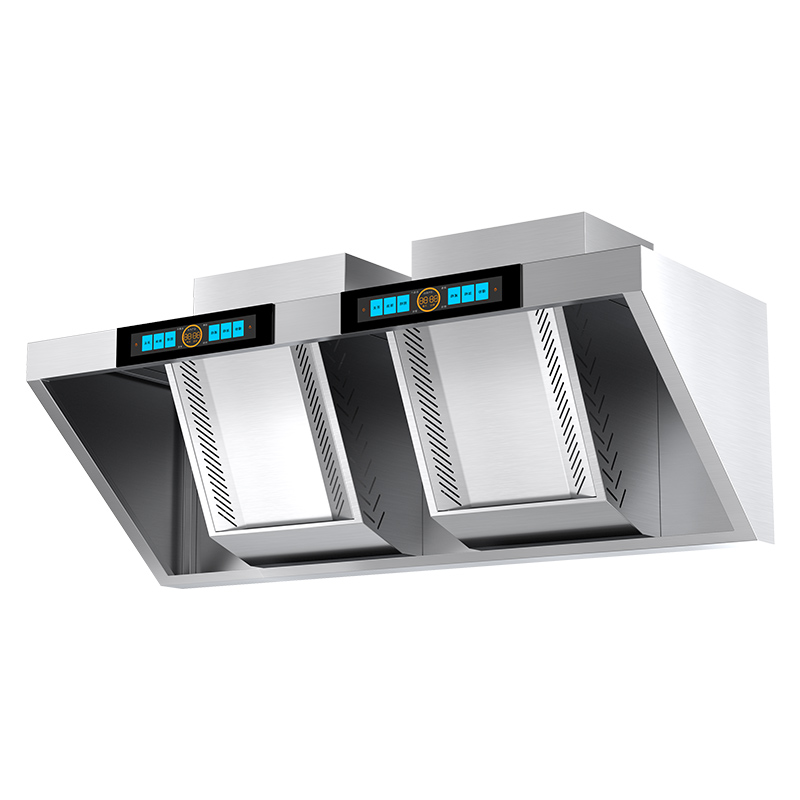

Frequency-converted Range Hood [Price, Quotation, Parameters, Customization]

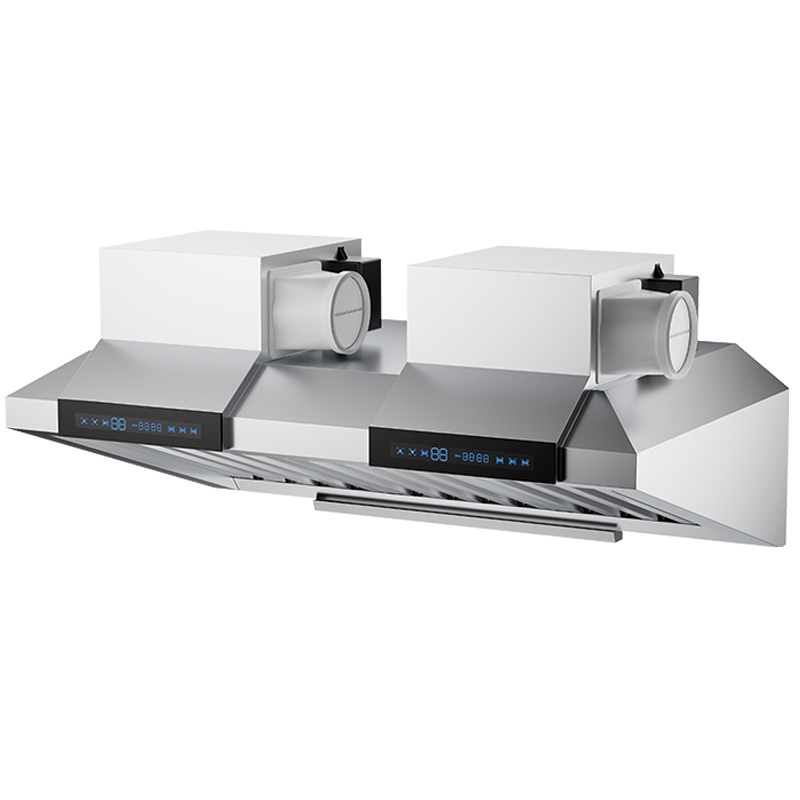

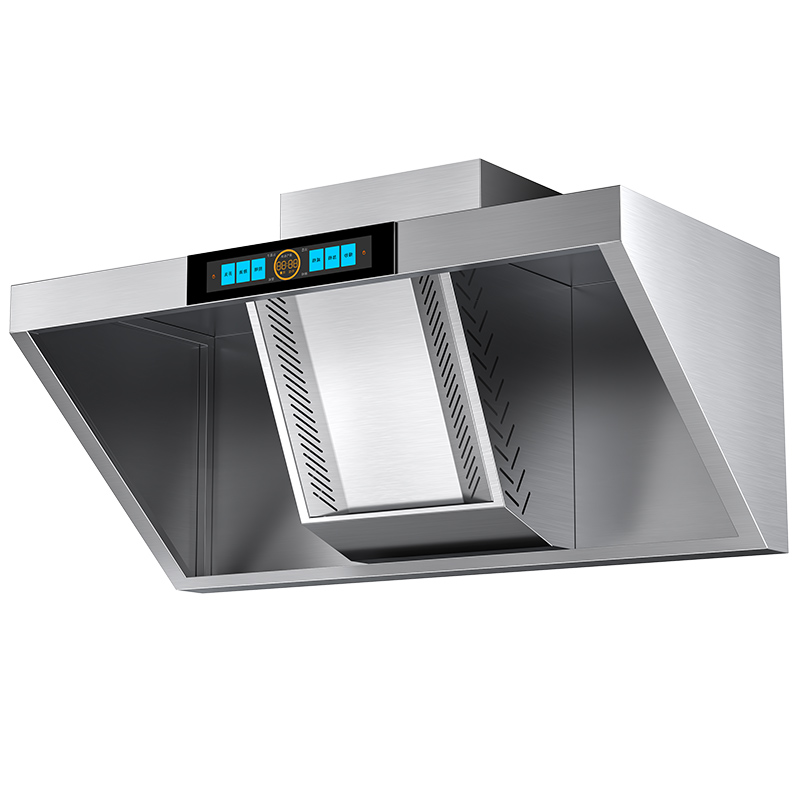

Frequency-converted Range Hood

CHINENG will upgrade the product specifications from time to time according to the market feedback. The parameters on the page may not be updated in time, so the specific parameters are based on the real products. At the same time, there are many kinds of commercial kitchen equipment, and some products do not appear on the page. If you have equipment needs or customized services, please add the customer service WeChat below for detailed consultation. Thank you for coming!

TikTok: chineng123

Wechat: 0086-13528627820

Details Product parameters After-sales service

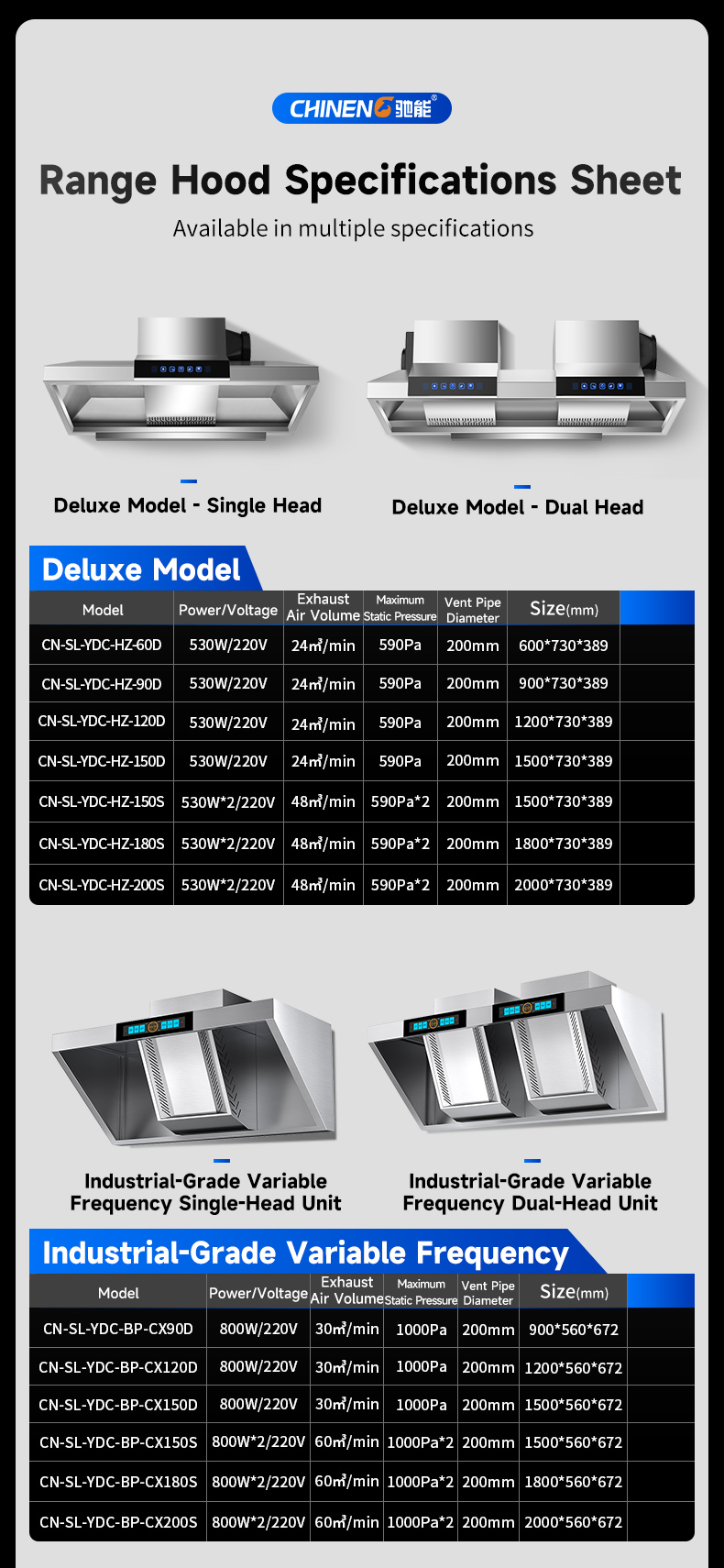

驰能变频油烟机规格参数

驰能变频油烟机性能

驰能变频油烟机配置

驰能变频油烟机

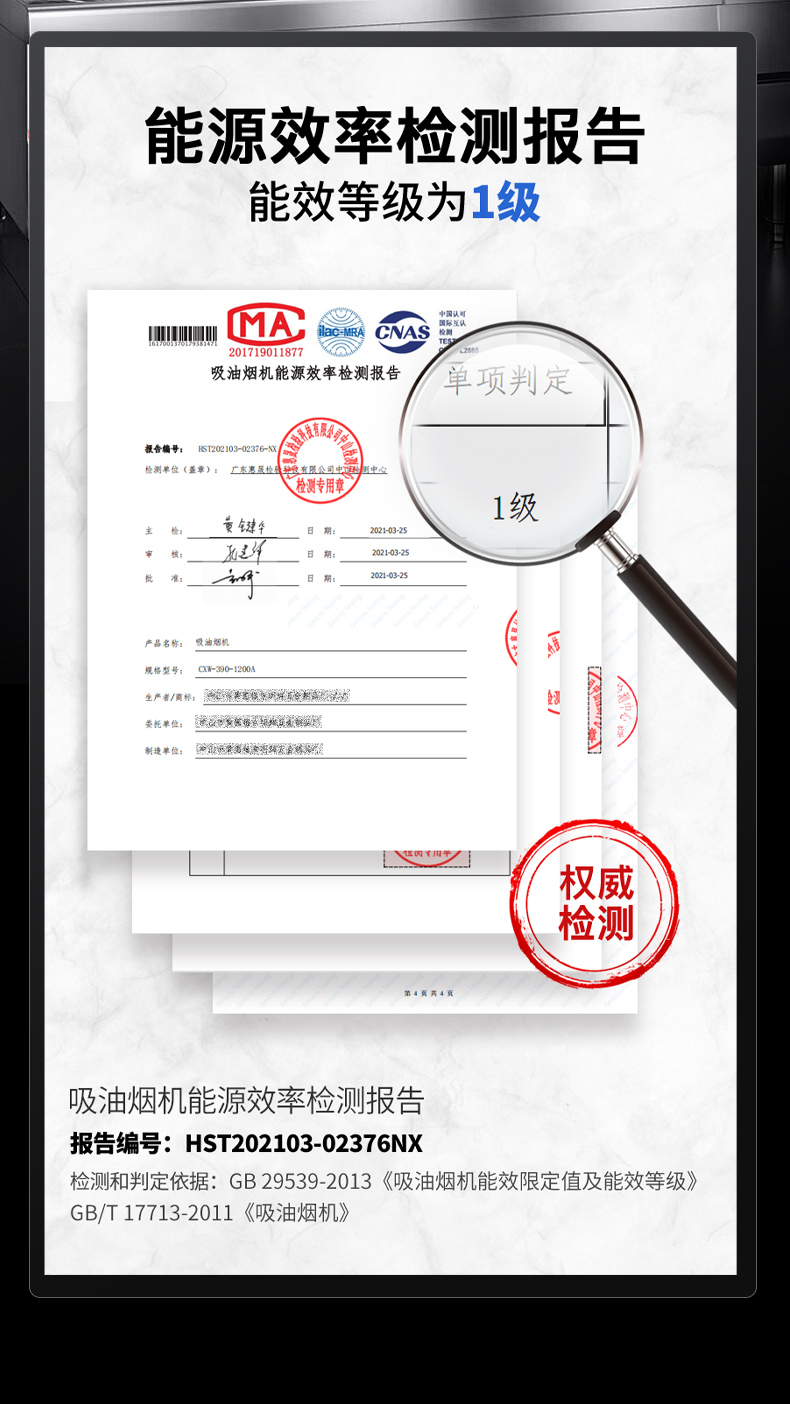

驰能变频油烟机检验报告

驰能变频油烟机变频技术

驰能变频油烟机性能2

驰能变频油烟机1.5米拢烟高度

驰能变频油烟机变频精铜电机

驰能变频油烟机电机对比

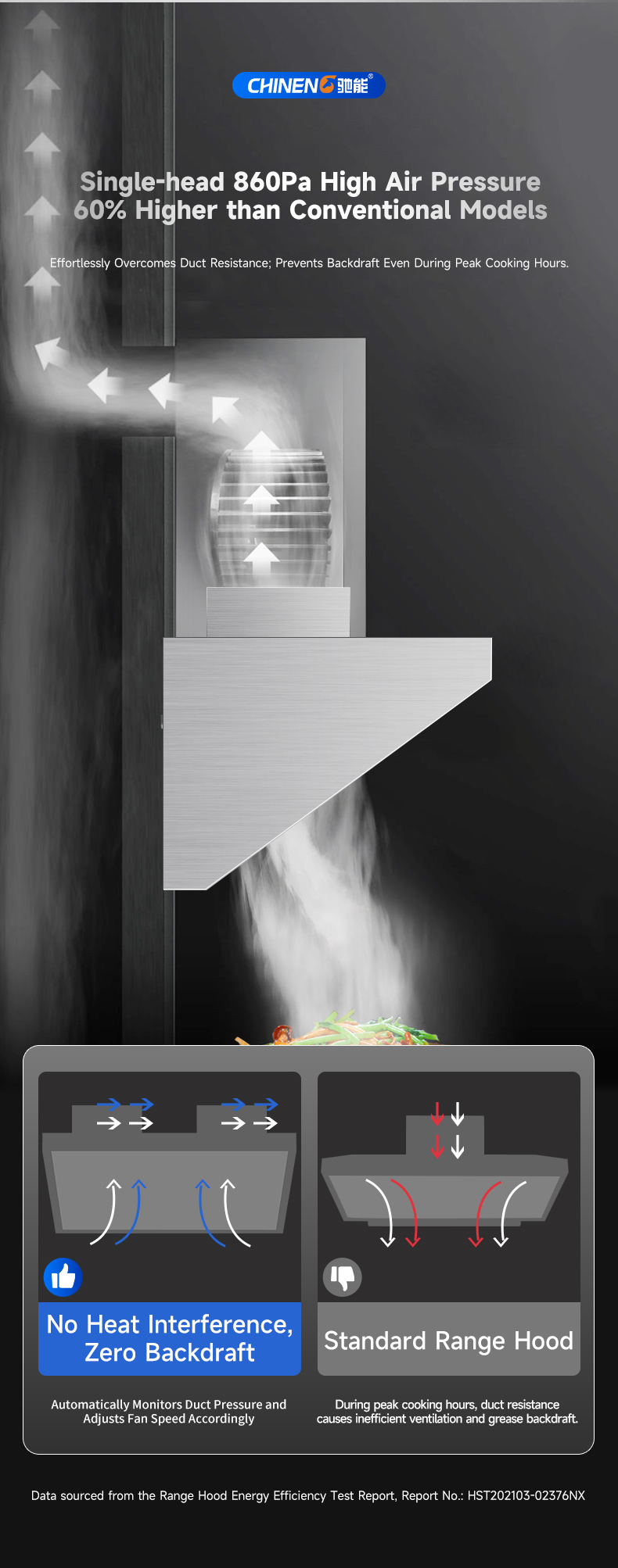

驰能变频油烟机大风压

驰能变频油烟机大风压2

驰能变频油烟机创新风道系统

驰能变频油烟机高度设计对比

驰能变频油烟机外置独立显示屏

驰能变频油烟机智能红外体感

驰能变频油烟机大油量油杯

驰能变频油烟机高温热清洗

驰能变频油烟机免组装

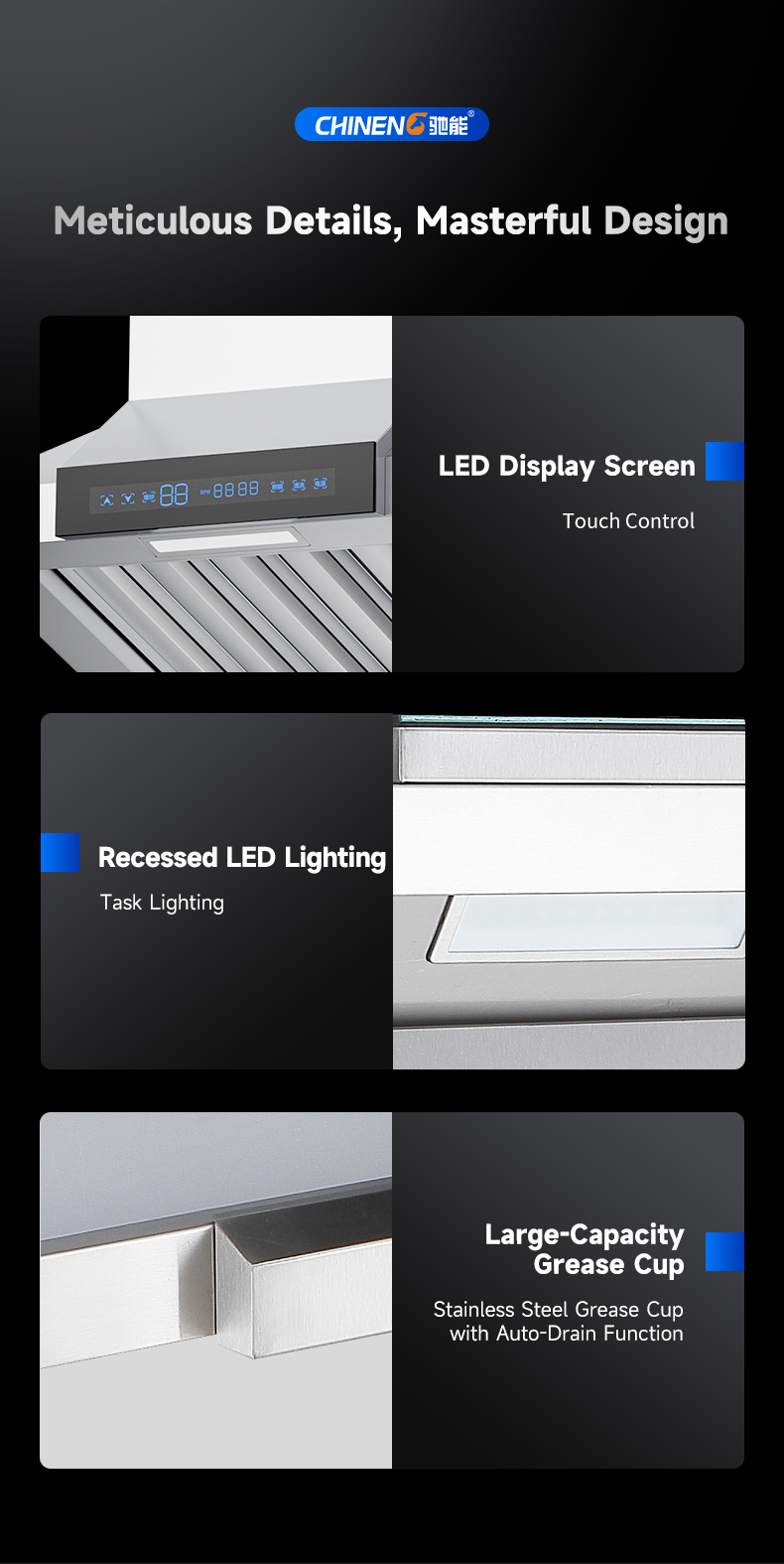

驰能变频油烟机局部细节

Luxury Series

YDC-HZ-60D
Power/Voltage: 530w/220v
Air Exhaust Rate: 24m³/min
Maximum Static Pressure: 590pa
Exhaust Duct Diameter: 200mm
Dimensions: 600x730x389mm

YDC-HZ-90D
Power/Voltage: 530w/220v
Air Exhaust Rate: 24m³/min
Maximum Static Pressure: 590pa
Exhaust Duct Diameter: 200mm
Dimensions: 900x730x389mm

YDC-HZ-120D
Power/Voltage: 530w/220v
Air Exhaust Rate: 24m³/min
Maximum Static Pressure: 590pa
Exhaust Duct Diameter: 200mm
Dimensions: 1200x730x389mm

YDC-HZ-150D
Power/Voltage: 530w/220v
Air Exhaust Rate: 24m³/min
Maximum Static Pressure: 590pa
Exhaust Duct Diameter: 200mm
Dimensions: 1500x730x389mm

YDC-HZ-150S
Power/Voltage: 530wx2/220v (dual motor)
Air Exhaust Rate: 48m³/min
Maximum Static Pressure: 590pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1500x730x389mm

YDC-HZ-180S
Power/Voltage: 530wx2/220v (dual motor)
Air Exhaust Rate: 48m³/min
Maximum Static Pressure: 590pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1800x730x389mm

YDC-HZ-200S
Power/Voltage: 530wx2/220v (dual motor)
Air Exhaust Rate: 48m³/min
Maximum Static Pressure: 590pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 2000x730x389mm

Luxury Series - Variable Frequency

YDC-HZB-90D
Power/Voltage: 220w/220v
Air Exhaust Rate: 24m³/min
Maximum Static Pressure: 1086pa
Exhaust Duct Diameter: 200mm
Dimensions: 900x730x389mm

YDC-HZB-120D
Power/Voltage: 220w/220v
Air Exhaust Rate: 24m³/min
Maximum Static Pressure: 1086pa
Exhaust Duct Diameter: 200mm
Dimensions: 1200x730x389mm

YDC-HZB-150D
Power/Voltage: 220w/220v
Air Exhaust Rate: 24m³/min
Maximum Static Pressure: 1086pa
Exhaust Duct Diameter: 200mm
Dimensions: 1500x730x389mm

YDC-HZB-150S
Power/Voltage: 220wx2/220v (dual motor)
Air Exhaust Rate: 48m³/min
Maximum Static Pressure: 1086pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1500x730x389mm

YDC-HZ-180S
Power/Voltage: 220wx2/220v (dual motor)
Air Exhaust Rate: 48m³/min
Maximum Static Pressure: 1086pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1800x730x389mm

YDC-HZ-200S
Power/Voltage: 220wx2/220v (dual motor)
Air Exhaust Rate: 48m³/min
Maximum Static Pressure: 1086pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 2000x730x389mm

Luxury Series - Variable Frequency Top Suction

YDC-DX90-D
Power/Voltage: 600w/220v
Air Exhaust Rate: 28m³/min
Maximum Static Pressure: 1086pa
Exhaust Duct Diameter: 200mm
Dimensions: 900x730x660mm

YDC-DX120-D
Power/Voltage: 600w/220v
Air Exhaust Rate: 28m³/min
Maximum Static Pressure: 1086pa
Exhaust Duct Diameter: 200mm
Dimensions: 1200x730x660mm

YDC-DX150-D
Power/Voltage: 600w/220v
Air Exhaust Rate: 28m³/min
Maximum Static Pressure: 1086pa
Exhaust Duct Diameter: 200mm
Dimensions: 1500x730x660mm

YDC-DX150-S
Power/Voltage: 600wx2/220v (dual motor)
Air Exhaust Rate: 56m³/min
Maximum Static Pressure: 1086pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1500x730x660mm

YDC-DX180-S
Power/Voltage: 600wx2/220v (dual motor)
Air Exhaust Rate: 56m³/min
Maximum Static Pressure: 1086pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1800x730x660mm

YDC-DX200-S
Power/Voltage: 600wx2/220v (dual motor)
Air Exhaust Rate: 56m³/min
Maximum Static Pressure: 1086pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 2000x730x660mm

Engineering Series - Variable Frequency

YDC-BP-CX90D
Power/Voltage: 800w/220v
Air Exhaust Rate: 30m³/min
Maximum Static Pressure: 1000pa
Exhaust Duct Diameter: 200mm
Dimensions: 900x560x672mm

YDC-BP-CX120D
Power/Voltage: 800w/220v
Air Exhaust Rate: 30m³/min
Maximum Static Pressure: 1000pa
Exhaust Duct Diameter: 200mm
Dimensions: 1200x560x672mm

YDC-BP-CX150D
Power/Voltage: 800w/220v
Air Exhaust Rate: 30m³/min
Maximum Static Pressure: 1000pa
Exhaust Duct Diameter: 200mm
Dimensions: 1500x560x672mm

YDC-BP-CX150S
Power/Voltage: 800wx2/220v (dual motor)
Air Exhaust Rate: 60m³/min
Maximum Static Pressure: 1000pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1500x560x672mm

YDC-BP-CX180S
Power/Voltage: 800wx2/220v (dual motor)
Air Exhaust Rate: 60m³/min
Maximum Static Pressure: 1000pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1800x560x672mm

YDC-BP-CX200S
Power/Voltage: 800wx2/220v (dual motor)
Air Exhaust Rate: 60m³/min
Maximum Static Pressure: 1000pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 2000x560x672mm

Ultimate Series

HBX-E120
Power/Voltage: 1876w/220v
Air Exhaust Rate: 70m³/min
Number of Fans: 2
Fan Power: 800wx2
Dimensions: 1200x850x1160mm

HBX-E150
Power/Voltage: 2804w/220v
Air Exhaust Rate: 105m³/min
Number of Fans: 3
Fan Power: 800wx3
Dimensions: 1500x850x1160mm

HBX-E200
Power/Voltage: 3717w/220v
Air Exhaust Rate: 104m³/min
Number of Fans: 4
Fan Power: 800wx4
Dimensions: 2000x850x1160mm

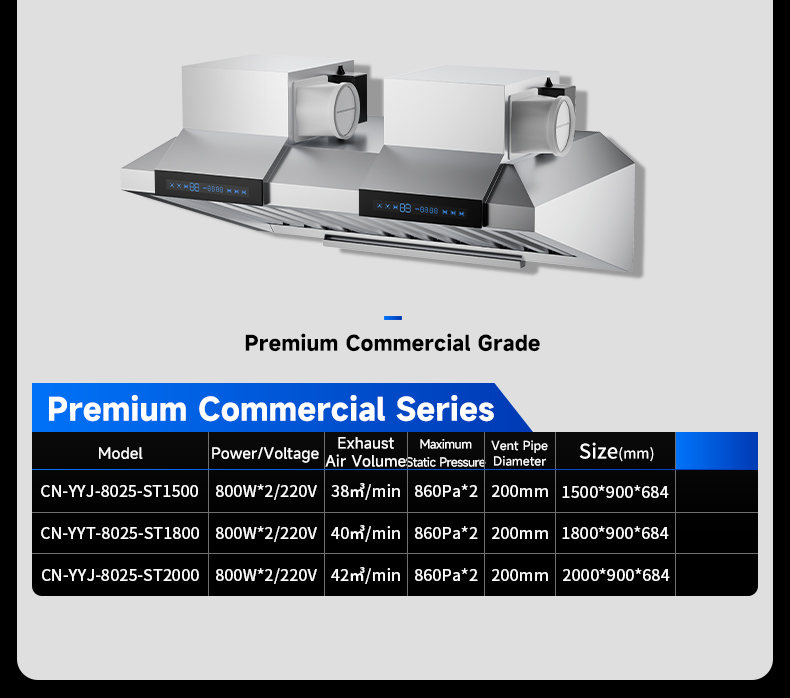

Luxury Commercial Series

CN-YYJ-8025-ST1500
Power/Voltage: 800wx2/220v (dual motor)
Air Exhaust Rate: 38m³/min
Maximum Static Pressure: 860pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1500x900x684mm

CN-YYJ-8025-ST1800
Power/Voltage: 800wx2/220v (dual motor)
Air Exhaust Rate: 40m³/min
Maximum Static Pressure: 860pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 1800x900x684mm

CN-YYJ-8025-ST2000
Power/Voltage: 800wx2/220v (dual motor)
Air Exhaust Rate: 42m³/min
Maximum Static Pressure: 860pax2 (for dual motor)
Exhaust Duct Diameter: 200mm
Dimensions: 2000x900x684mm

Sales process Customized process

Sales process

Consultation

Make an appointment for free on-site survey by consulting or filling in the form

Requirements submission

Submit or inform the customer service of your usage environment, scale, usage and other information

Recommended kitchen equipment

According to customer needs, customer service recommends relevant products and models and gives a detailed introduction

The customer places an order

The functional parameters of the equipment shall meet the customer's requirements for placing an order

Factory delivery

According to the customer's order model, the factory carries out production packaging and delivery

Equipment installation

We have a professional installation master to install and test

After-sales service

If there is any problem with the kitchen equipment, there will be professional door-to-door service

Customized process

Consultation

Make an appointment for free on-site survey by consulting or filling in the form

Requirements submission

Submit or inform the customer service of your usage environment, scale, usage and other information

Recommended kitchen equipment

According to customer needs, customer service recommends relevant products and models and gives a detailed introduction

Engineer design

Equipment engineer gives design feedback according to the requirements submitted by the customer

Identify a custom design

The equipment engineer determines the customized design according to the customer's needs for the customer to determine.

Factory production

After the customized design is determined, it is handed over to the factory for production, and there is a certain production cycle according to the difficulty of customization

Factory delivery

After the customized equipment is tested and no problem is found, it will be packed and shipped

Equipment installation

We have a professional installation master to install and test

After-sales service

If there is any problem with the kitchen equipment, there will be professional door-to-door service
